With the introduction of the EPM 100 and EPH 125, UniCarriers is launching two more models from its completely revised picking range into the market. Available for order from November 15th, these new machines complete the order picker family, which also includes the EPL 100 introduced in January 2016. These three vehicles now allow UniCarriers to offer customised solutions for low, medium and extra high pick heights. Thanks to their ergonomic driver cabs and advanced safety systems, the order pickers present an ideal workstation for efficient picking processes.

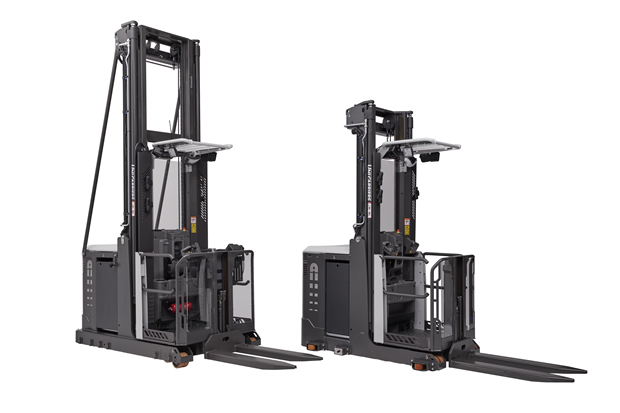

100 and EPH 125 will complete the full range of order
pickers
Equipped with 48-volt, high-performance motors and pick heights up to 12,100 mm, the EPH is the perfect solution for intensive operations. This truck can operate with loads up to 1,250 kg and achieves a top speed of 12 km/h.
Designed for picking heights up to 9,850 mm, the 24V EPM can reach a maximum speed of 11 km/h while carrying a load of 1,000 kg. The EPM now completes the range of order pickers including the compact EPL for picking heights up to 3,400 mm and the above mentioned EPH.
These new order pickers feature a stable, completely re-designed chassis and their modern cab design includes controls that can be adjusted to the height and position of each driver’s individual requirements. The EPM and EPH are optionally available with operating controls on both the mast and fork sides to ensure maximum productivity and ergonomic design.
Safe and economical to drive around warehouse
For safety reasons, high level order pickers may only move if there is a driver in the cab. To ensure that this is the case, all models in the EP series are fitted with a full floor covering sensor on the driver’s cab platform, which means that the operatoris not tethered to a single spot, greatly improving comfort. They are also free to stand comfortably and not restricted to a position dictated by having to depress a deadman button. The side safety gates are also connected to a cut-out which ensures the lift height will not exceed 1,200 mm without the gates being closed. If they are not, the machine will not function. This also makes picking from floor located pallets much easier because the truck can be operated up to 1,200 mm lift with the gates open, instead of opening and closing every time a pick is from the ground level. Featured as standard, the built-in on-board computer provides rapid access to all vehicle settings and manages the authorised drivers’ login details and user profiles.
Office for the operator
The EP series provides a safe and comfortable working environment, similar to that of an office. A spacious environment that contributes towards safety, comfort and efficiency, with a clear entry of 525 mm which facilitates easy entry and exit. Too cramped could result in Repetitive Strain Injury or accidents – too deep would not provide the driver with the best position. This space provides an efficient, uncluttered, comfortable and safe workstation, with plenty of storage space for materials, pick notes and the like, to enable them to carry out the job, whilst keeping everything clear and safe. The Pro-Vision TV/DTFV mast and front panels of the cabin have see-through panels and when the mast is elevated, this provides the operator with near 360° visibility. In order to avoid lights shining and distracting the operator, warning lights are placed inside the straddle legs and at the corners of the chassis.
Longer battery life thanks to eco mode
In addition to the standard operating condition, the EPM and EPH also feature an eco mode. This reduces battery consumption and provides a more energy-efficient operation. At 66 decibels for the EPM and 65 for the EPH, these order pickers are also whisper-quiet in their operation and lowest in their class. The models can be freely driven around the warehouse or work in very narrow aisles controlled by guide rails or inductive guidance. Safer operation can also be ensured in very narrow aisles with preparation for the option of a Personal Protection System. When using this system, the truck detects people or other handling equipment in the aisle with the help of a laser and stops moving if necessary to avoid a collision.
International Forklift Truck of the Year 2017
The EPH has been entered into the IFOY 2017 awards, category for ‘Warehouse Truck “highlifter”’. The EPH will undergo a unique testing and selection process, as well as an Innovation Check made by scientists. We look forward to the nominations between December and January.
About UniCarriers
UniCarriers is a globally active developer and manufacturer of industrial trucks. Its versatile, customisable transport solutions for logistics and warehouses are produced at its production facilities in Sweden, Spain, Japan, China and the US. Its vehicles are sold at specialist retailers or directly to end customers by an experienced team of sales experts. Its main customers are in the automotive, construction, food, logistics and pharmaceuticals sectors, heavy industry and the processing industry.
UniCarriers Holdings Corporation was created in 2011 through a merger between the Nissan Forklift, TCM and Atlet brands. Based in Tokyo, the company has branches in Europe, America and Asia with its European headquarters located in Mölnlycke, near Gothenburg, Sweden. In the business year 2015, the company group had 5,515 employees worldwide and generated sales worth 1.482 billion euros. UniCarriers has formed part of Mitsubishi Heavy Industries since March 2016. With its subsidiaries Mitsubishi Nichiyu Forklift and UniCarriers, Mitsubishi is the world’s third largest fork lift manufacturer.
