Schwank’s new hybridSchwank system is using innovative methods to trap and re-use waste heat, recovering up to 15% of the installed heating power. Typically, this may be used to heat adjacent offices or produce hot water for washrooms.
The world’s market leader in the supply of infrared heaters for industrial and commercial buildings, Schwank has used its experience and technical expertise to ensure that hybridSchwank is an exceptionally efficient heat recycler:

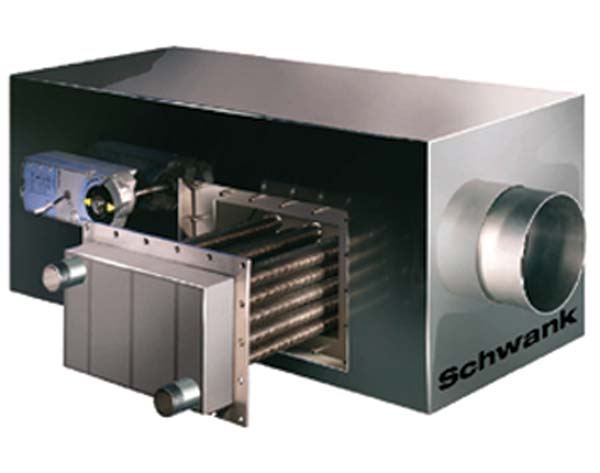

• Flue gas from the infrared heating system’s combustion process is collected via duct systems and fed into a recuperative air-water heat exchanger
• The heated water (temperatures up to 90ºC) is supplied to the hot water storage tank
• A custom control system, with 3-way mixing valve and temperature sensors, controls the inflow into the system
• Recovered energy in the form of heated water is stored and available to be used in the office heating system
Schwank has found that up to 18% of a building’s floor space can be heated through recovered heat.
A good example of the hybrid system’s benefits can be seen at the Bauer Service Centre installation where Schwank worked with energy consultant KfW, replacing an expensive oil heating system with efficient infrared heating using Schwank tube heaters. In spite of frequently open workshop doors, the comfortable heat level soon improved noticeably!
The decision to install Schwank infrared heaters and hybridSchwank was made for environmental as well as operational reasons and benefits were swift. Bauer has been able to save 650,000 kWh per year in the production facilities and 55,000 kWh per year at their office premises. This results in winter savings of 51% for production facility and 29% for the offices.
Steve Sherman, Managing Director of Schwank Limited, comments: “We have produced hybridSchwank as part of a continual drive for increased energy efficiency throughout our product range, cutting customer operating costs and reducing carbon emissions.”
Schwank Ltd
Tel: 0208 641 3900
Email: sales@schwank.co.uk
