Versatile handling for smaller terminals in maritime and river ports

 Individual solutions for bulk handling applications

Gottwald Port Technology GmbH, a subsidiary of Demag Cranes, has launched its new Model 2 Harbour Crane, specifically designed to meet the needs of smaller terminals in maritime and river ports. The new model has a maximum lifting capacity of 80 t, a radius of up to 40 m and hoisting speeds of up to 120 m/min. Model 2 is the first member of Gottwald’s Small Crane Family, which has now extended Gottwald’s Generation 5 Harbour Cranes into the realms of smaller cargo handling applications.

As part of the launch of the Model 2 range, Gottwald has introduced a new crane type, the G HRK Rubber Tyred Portal Harbour Crane. This crane type combines the mobility of the classic rubber tyred G HMK Mobile Harbour Crane with the benefits associated with a drive under portal solution, such as the G HSK Portal Harbour Crane. In addition, Gottwald is also offering the new Model 2 as a Floating Crane, G HPK Harbour Pontoon Crane,  as a G HSK Portal Harbour Crane on a barge, with individually tailored barges, or as a fixed G HPK Pedestal Mounted Harbour Crane.

“Our Model 2 fully meets the demand for a versatile handling machine, constructed specially for smaller maritime and river ports. At the same time, the launch of the new G HRK crane type further cements our pioneering reputation in Harbour Cranes, based on proven Mobile Harbour Crane technology” stated Giuseppe Di Lisa, Head of Port and Intermodal Cranes at Demag Cranes. “By combining the diversity of crane types and variants on one hand with our Advance Order Programme on the other, we are able to offer customers tailored solutions and short delivery lead times. This is a concept from which terminal operators all over the world are benefiting.” added Di Lisa.

Specifications and performance data

With a maximum lifting capacity of 80 t, radius of up to 40 m and hoisting speeds of up to 120 m/min, Model 2 offers considerably higher lifting capacity, an extension of the working radius by two metres and faster working speeds compared with its predecessor, the 63t HMK 170 Mobile Harbour Crane. These enhanced features facilitate much improved handling rates. In comparison with its predecessor, there have been many changes in design and drive technology, such as AC powered hoists and slewing gear units. Potential customers interested in Model 2 can take advantage of a broad range of options to enhance ergonomics, productivity and environmental compatibility. These options include a particularly energy efficient hybrid drive and equipment for hooking up to a quayside power supply.

Crane variants

Gottwald’s new crane model is available to the market in three variants, two of which are 2 rope cranes and one a 4 rope grab crane.

The two 2 rope variants, equipped with a single hoist, offer maximum lifting capacities of 63 t at  up to 21 m and 80 t at up to 17 m radius. They are particularly well suited to handling containers and general cargo alongside barges, coasters and feeder vessels with up to eight container rows. The 4 rope grab variant is equipped with a second hoist and, to ensure a long lifetime, has a 25 t grab curve for A8 classification and 32 t grab curve for A7. This crane is designed for professional, tough handling of a broad range of bulk materials including coal, ore, agribulk and biomass alongside barges, coasters and Handysize vessels. It has a maximum lifting capacity of 63 t and a radius of up to 38 m.

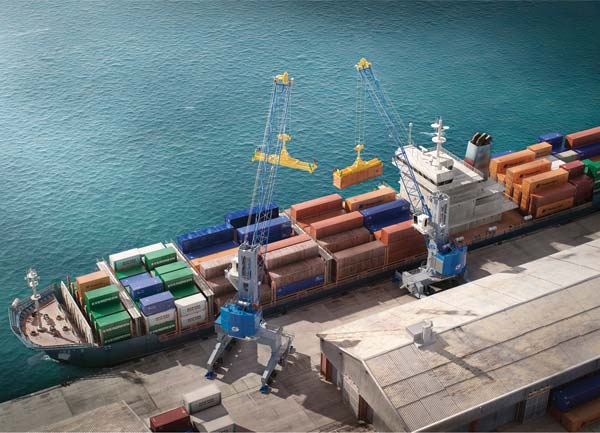

New crane type – G HRK Rubber Tyred Portal Harbour Crane

Gottwald’s existing range of Generation 5 Cranes has now been supplemented with the G HRK Rubber Tyred Portal Harbour Crane, incorporating a mobile drive under portal. The proppable standard portal with a propping base of 12.5 m x 11 m, a clearance height of 6 m and a clear width of 9.5 m, allows ample space for terminal transport vehicles to pass underneath it. This ensures that HGV and railway traffic or, alternatively, conveyor belts, can operate beneath the crane.

The G HRK Rubber Tyred Portal Harbour Crane is fully mobile and can be travelled to its next job site. The portal has four axle alignments with two subframes each, which can be steered at up to 40° for crab steering, tight turning circles and even on the spot turning. This guarantees good manoeuvrability even on very narrow quays and, as a result, fast, easy positioning alongside the vessel.

The spacing between each pair of the four axle alignments is 2.1 m. The 4.2 m spacing between the two inner axle alignments means there is room for a fifth, if necessary, while retaining the spacing between axle alignments of 2.1 m, so the G HRK Rubber Tyred Portal Harbour Crane can also be used on quays where the infrastructure only permits lower loadings, e.g. when travelling the crane.

Demag Cranes & Components Ltd

Tel: 01295 676125
