Rising to the call for improved green performance, Transdek UK recently launched the latest in its range of double deck loading systems, a 20 tonne capacity dock lift.
The new lifts, which incorporate a number of innovative energy saving and reliability-enhancement features, are designed for the loading and unloading of both fixed and powered double deck trailers at retail distribution centres and have already gone into operation with one major supermarket chain.
With only a single, powerful ram to drive the lift platform up and down, the system benefits from a simplified mechanical operation. “One of the main objectives in the development process has been to reduce the number of major components,” explains Leon Butler, Transdek’s Operations Director. “The more rams involved in a lift mechanism, the greater the likelihood of them working out of synch and tipping the load platform. It is impossible for the lift to move out of synch with the single ram design, a factor that significantly improves operating reliability.”
The horizontal ram mounting and rope lifting mechanism allow the lift platform to lower to the ground without the unit being sunk into a pit. This means the equipment can be used for the cost effective loading of low-floor (200mm) Continental stub axle double deckers. “We hope that this feature will encourage increased double decking of goods from mainland Europe into the UK,” comments Butler. “Because of the greater mileages involved, this offers even bigger pro rata cost and environmental saving potential than domestic double decking.”
With a focus on improved green ideology, Transdek’s latest lifts also incorporate a number of other environmental design features. High frequency, low-power lights linked to motion sensors are installed as standard to minimise power usage, cutting electricity consumption for the lift lights by 81%. “Per unit, the cost savings are not massive, but over a hundred units, we estimate annual savings of £36100 for our customers from the lighting modifications alone,” says Butler.
Another new and unique feature is the energy-efficient lower function which, used in conjunction with Transdek’s dual-speed lift capability, saves up to 42% on power usage. Unlike some designs, which require the hydraulics motor to function continually on both lifting and lowering, the main motor on Transdek’s lift automatically switches off during lowering. A series of high-efficiency 24V solenoids are sufficient to return the hydraulic fluid to the tank.
To assist with rapid maintenance and the smooth operation of the 20 tonne lifts, Transdek have also developed a unique pictogram LED fault-finding monitor display. This provides operators with at-a-glance information relating to the operating and service status of the lift.

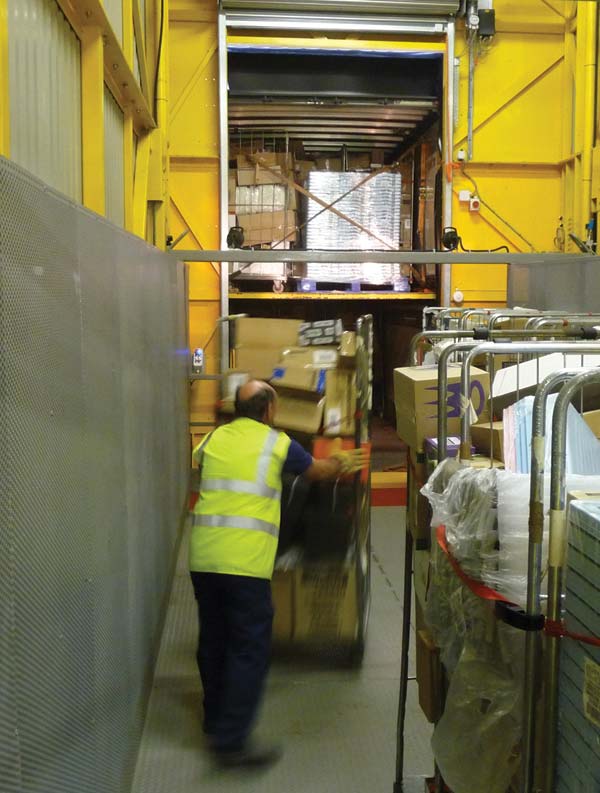

Specially designed lift gates provide a wider lift opening to facilitate optional loading by powered pallet truck, enabling faster load handling with less manual handling. The 8900mm-long platform holds 30 rollcages and is reinforced to withstand the high point-load stresses generated by powered pallet truck operations.

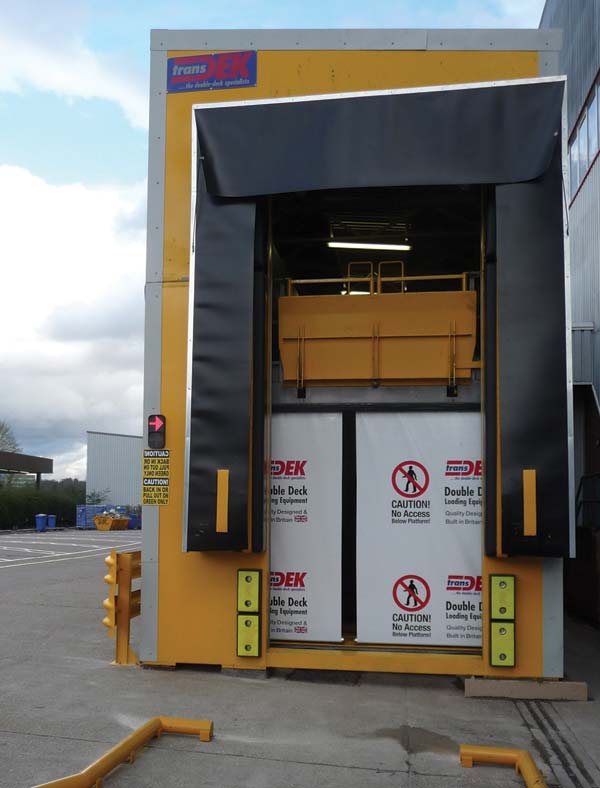

As with other Transdek lifts, the new models are pre-built into loadhouses, along with all hydraulic mechanisms and electrical wiring. Load testing is carried out prior to despatch so the lift pods can be quickly installed and commissioned at the customer’s warehouse. Each lift unit is supplied in two sections, roof and base, that are simply lifted into position on location.
Product Specification
•Free-standing, electro-hydraulically powered lifts
•Surface mounted. No civil engineering or pits required for installation.
•Fully load tested and quality approved before despatch from factory.
•CE plated
•SWL: 20 tonnes
•Load capacity: up to 36 rollcages
•Platform width: 3850mm (including partitioned personnel walkway)
•Platform length: 8900mm
•Overall footprint: 4264mm x 11950mm
•Lift stroke: 150mm to 3000mm (from ground level)
•Cordoned operator lift platform walkway provides operator access front-to-rear past full load
•Hydraulically operated bridging plate from lift platform to vehicle floor
•Fully clad lift pod providing temperature-controlled lift housing.Incorporates dock seals, lighting, vehicle-buffers, traffic lights
•Floor-mounted wheel guides: to ensure vehicles reverse in alignment with lift
•Safety features include interlocked front and rear safety gates; safety edges fitted to lift perimeter edges; isolated controls on lift platform
transdek uk leon butler tel: 01777 705958 email: info@transdek.com www.transdek.com
